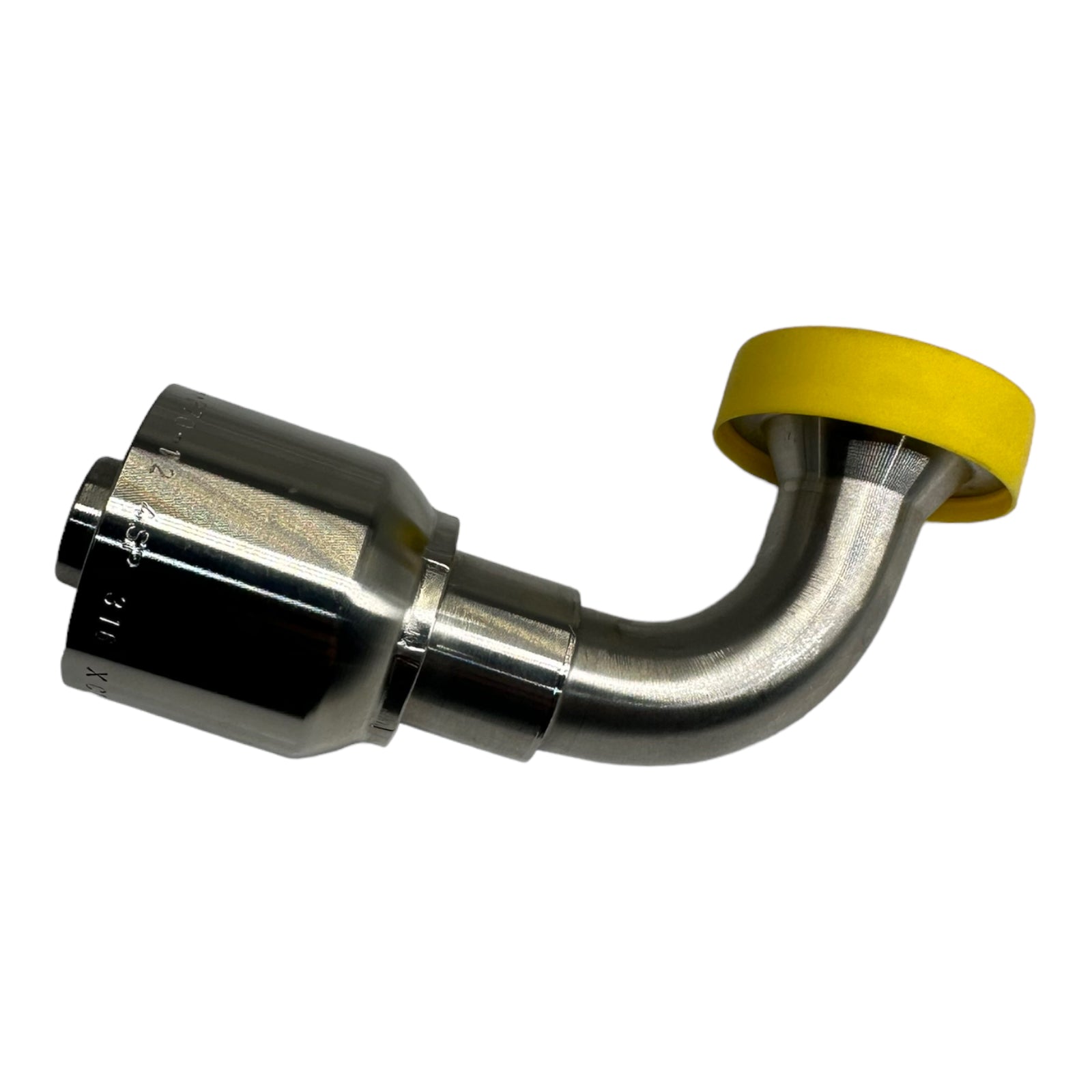

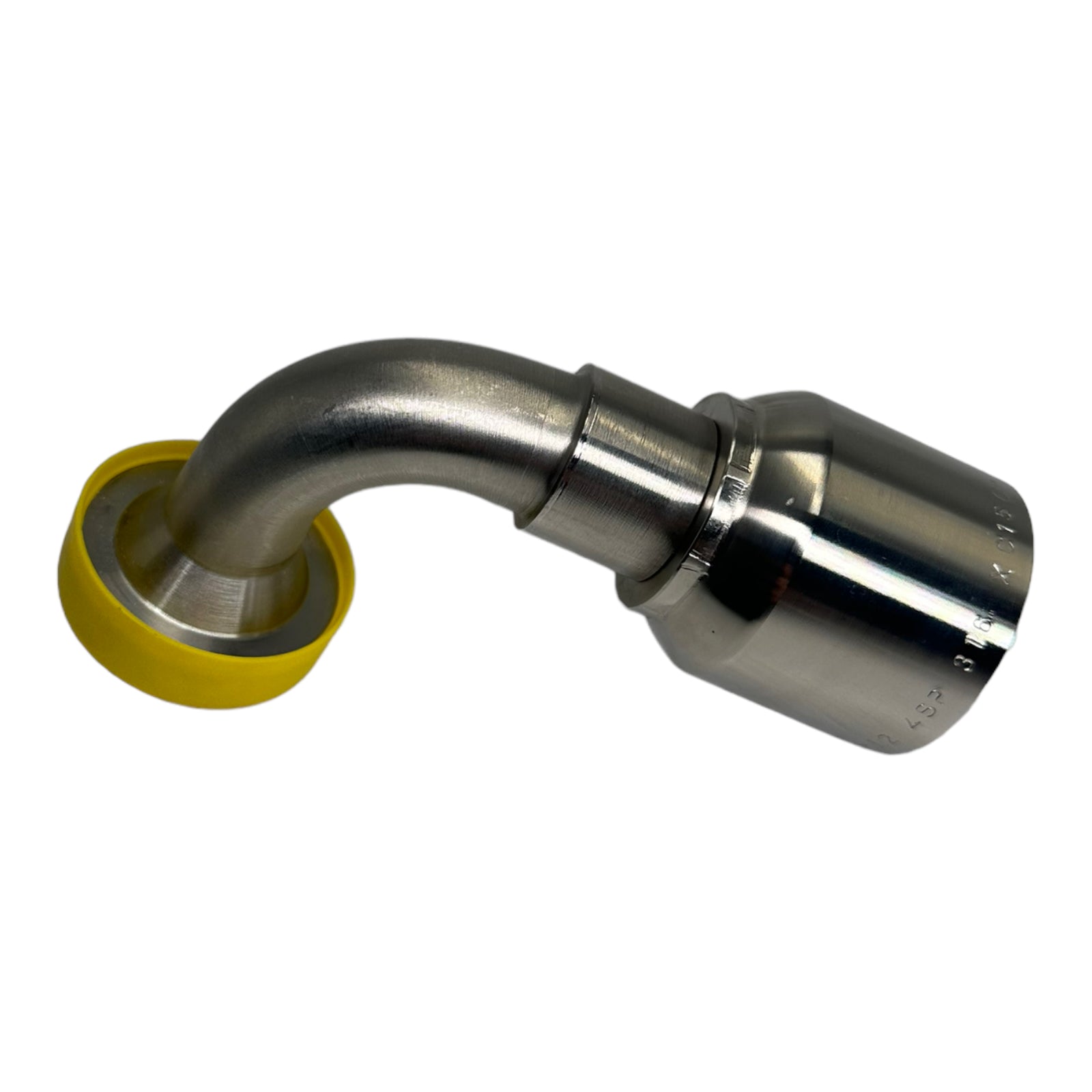

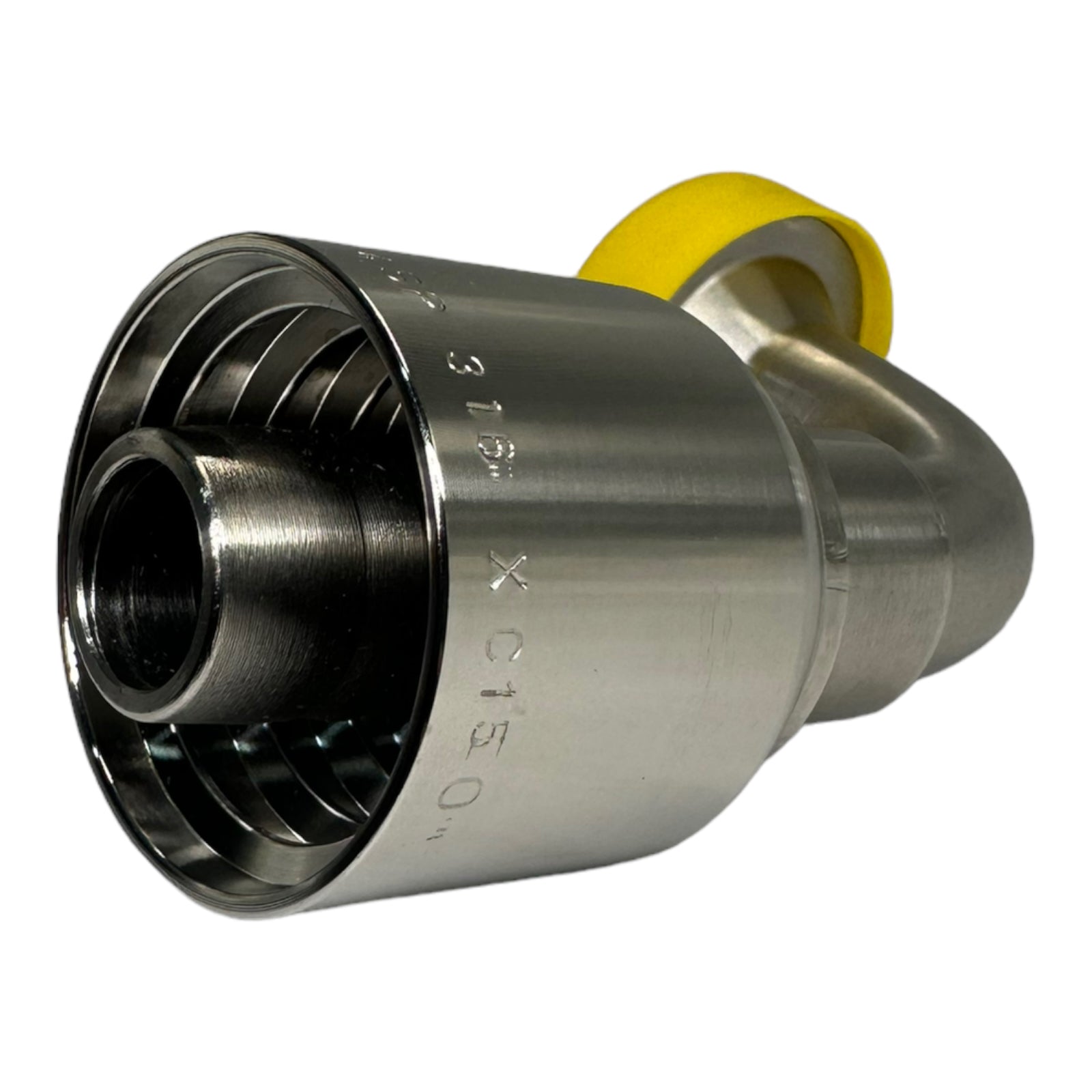

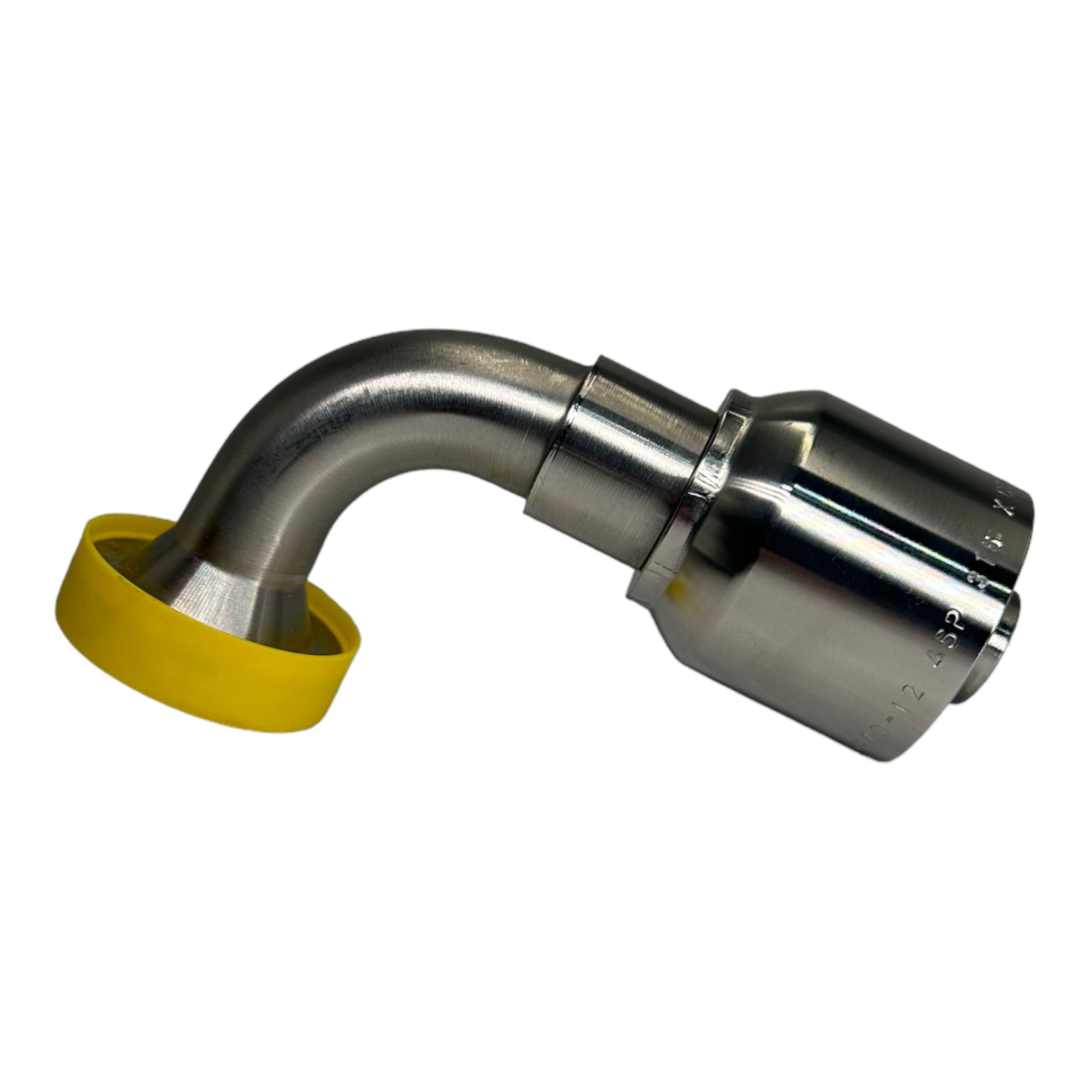

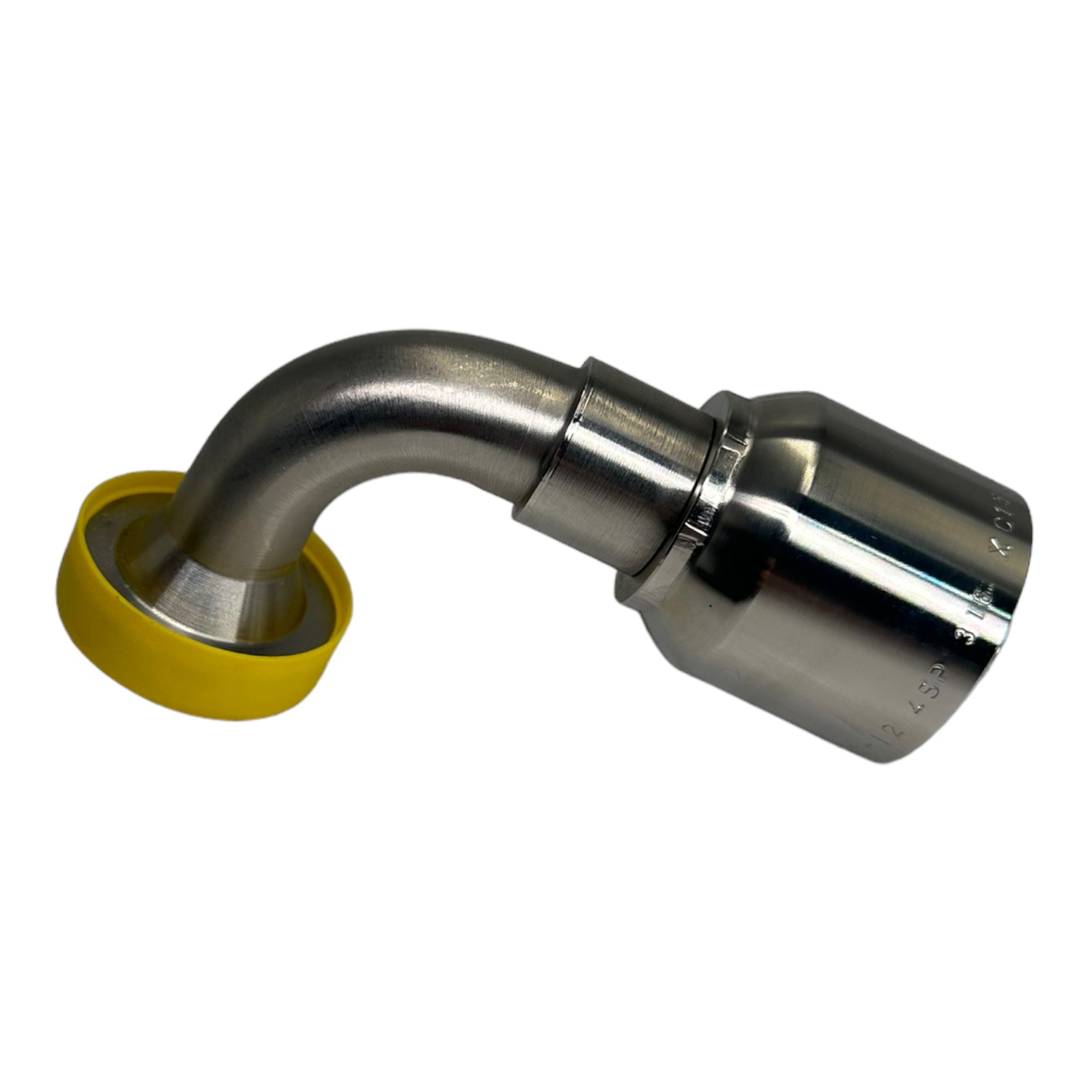

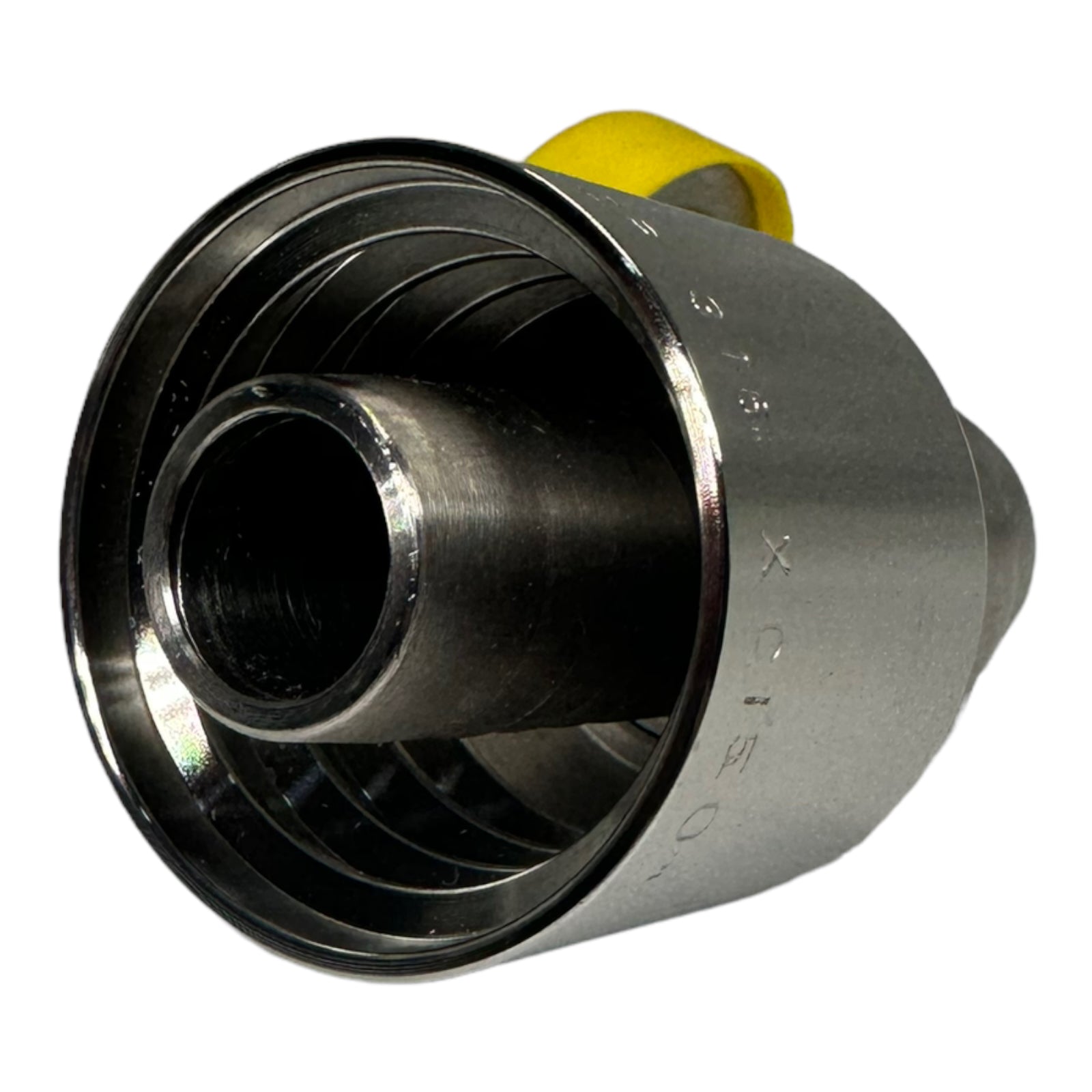

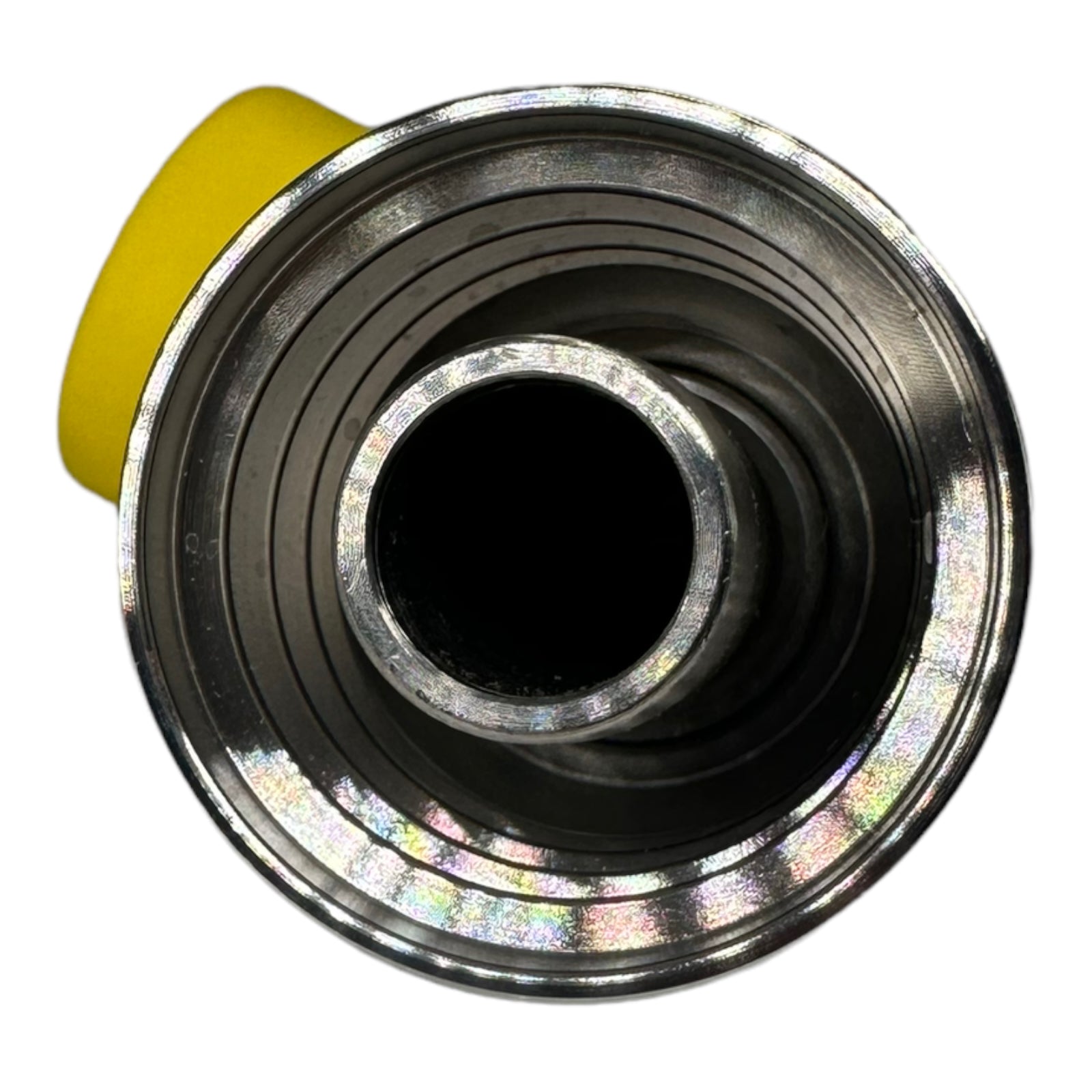

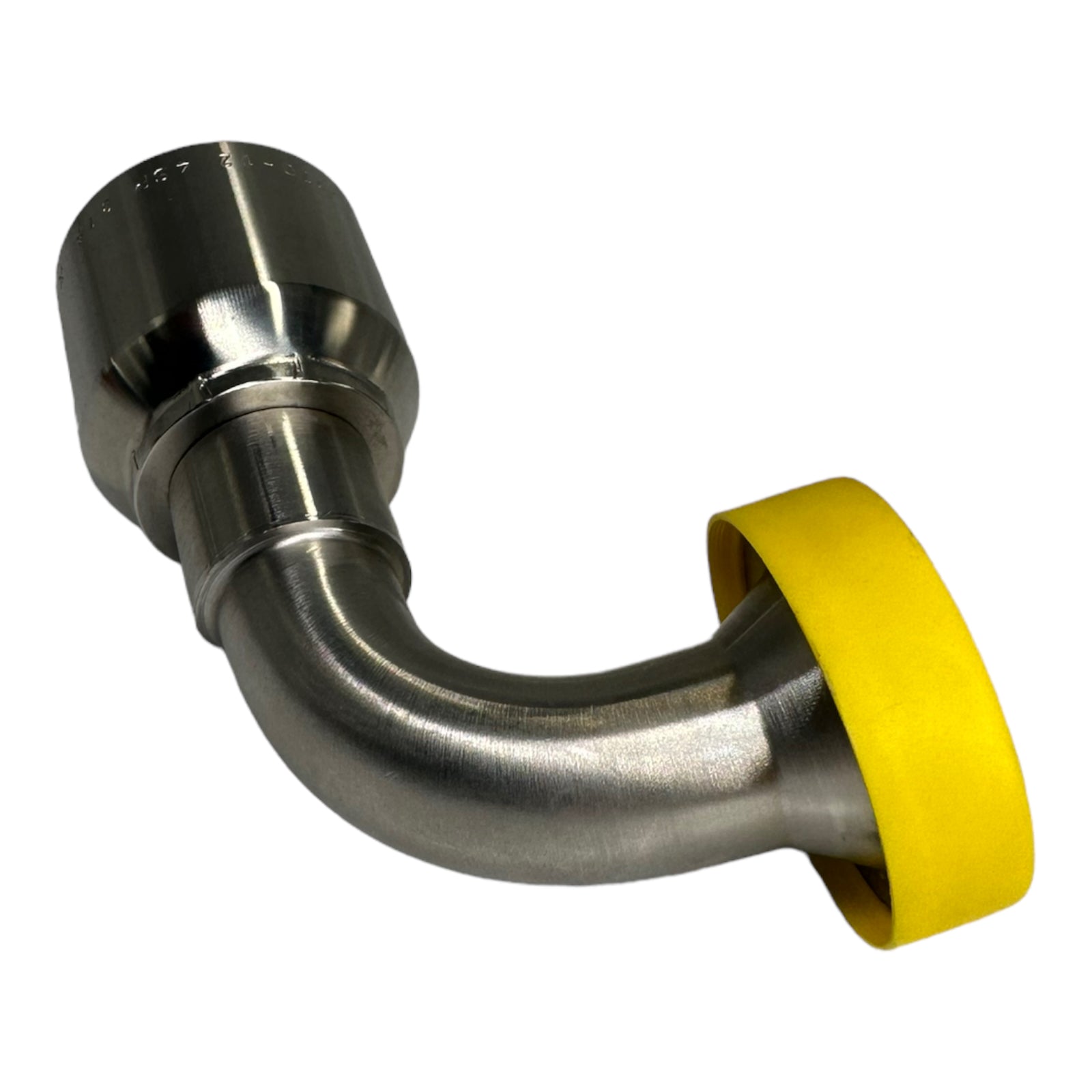

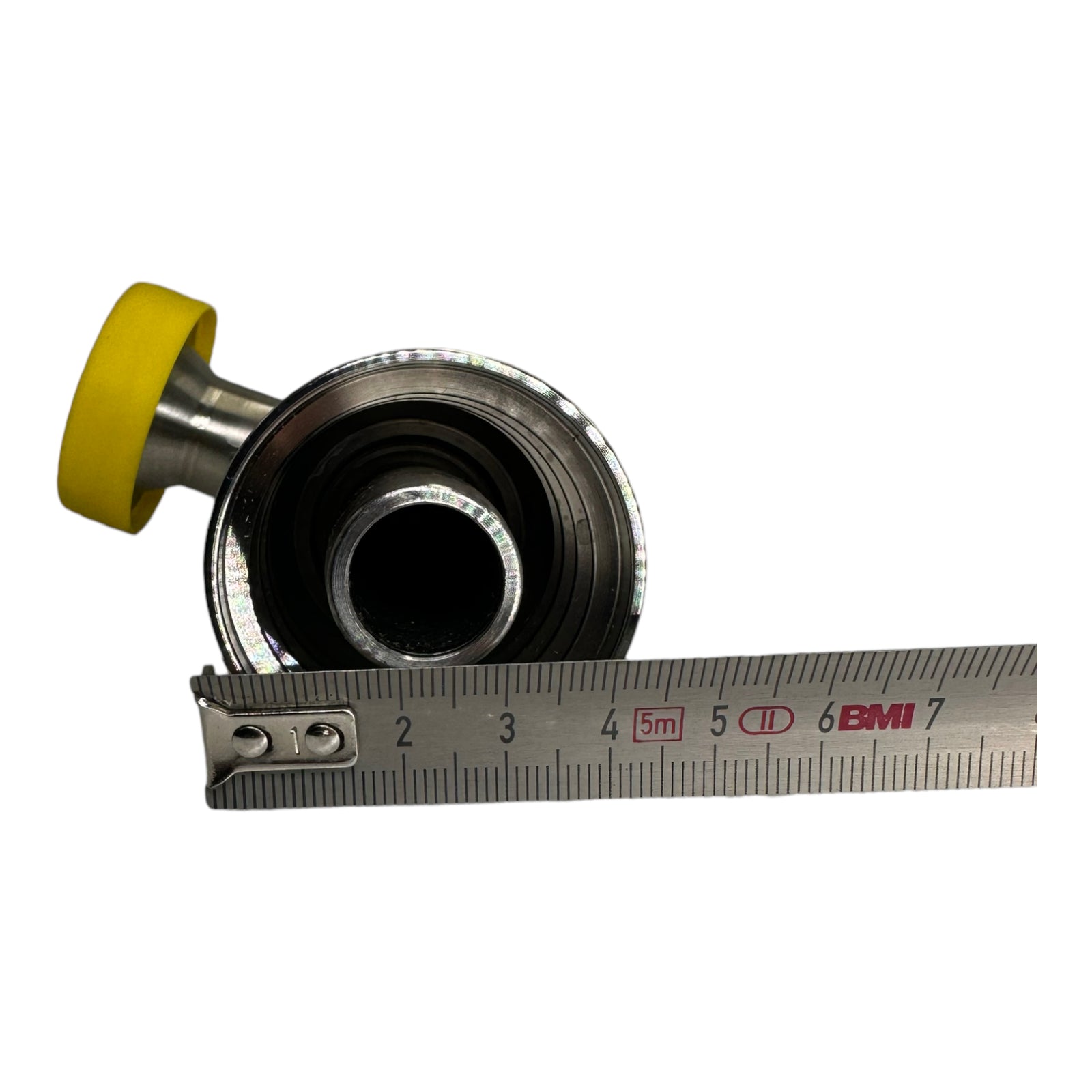

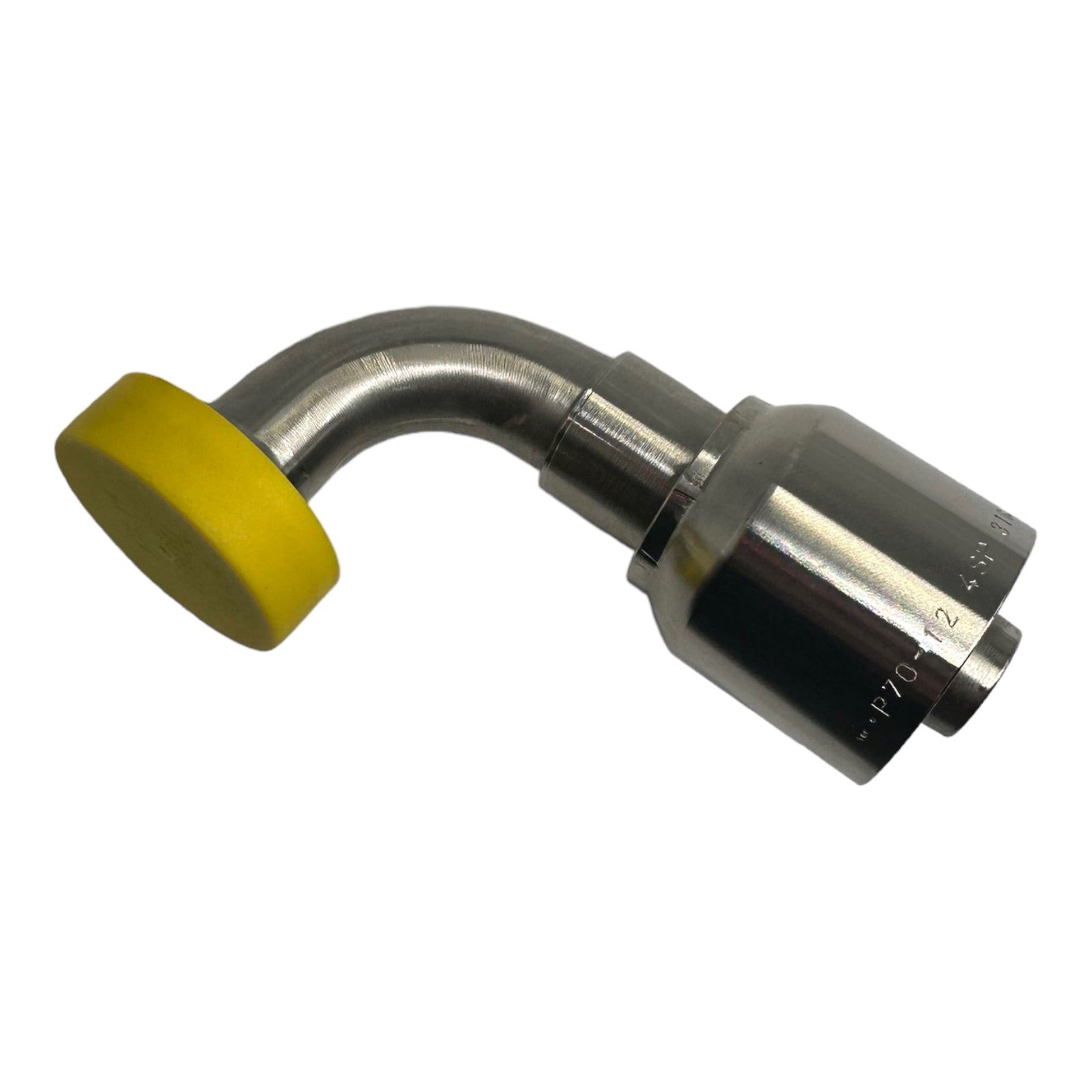

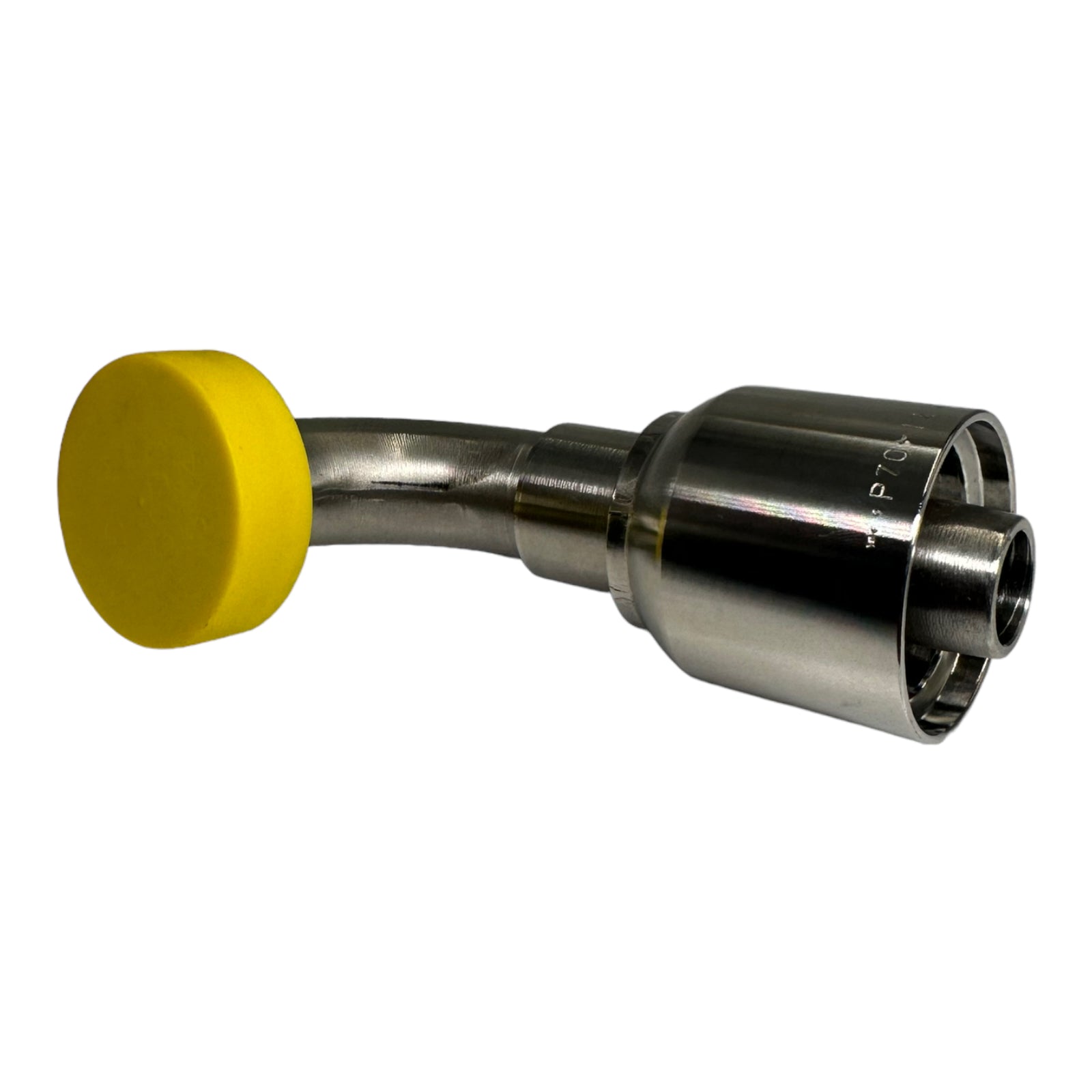

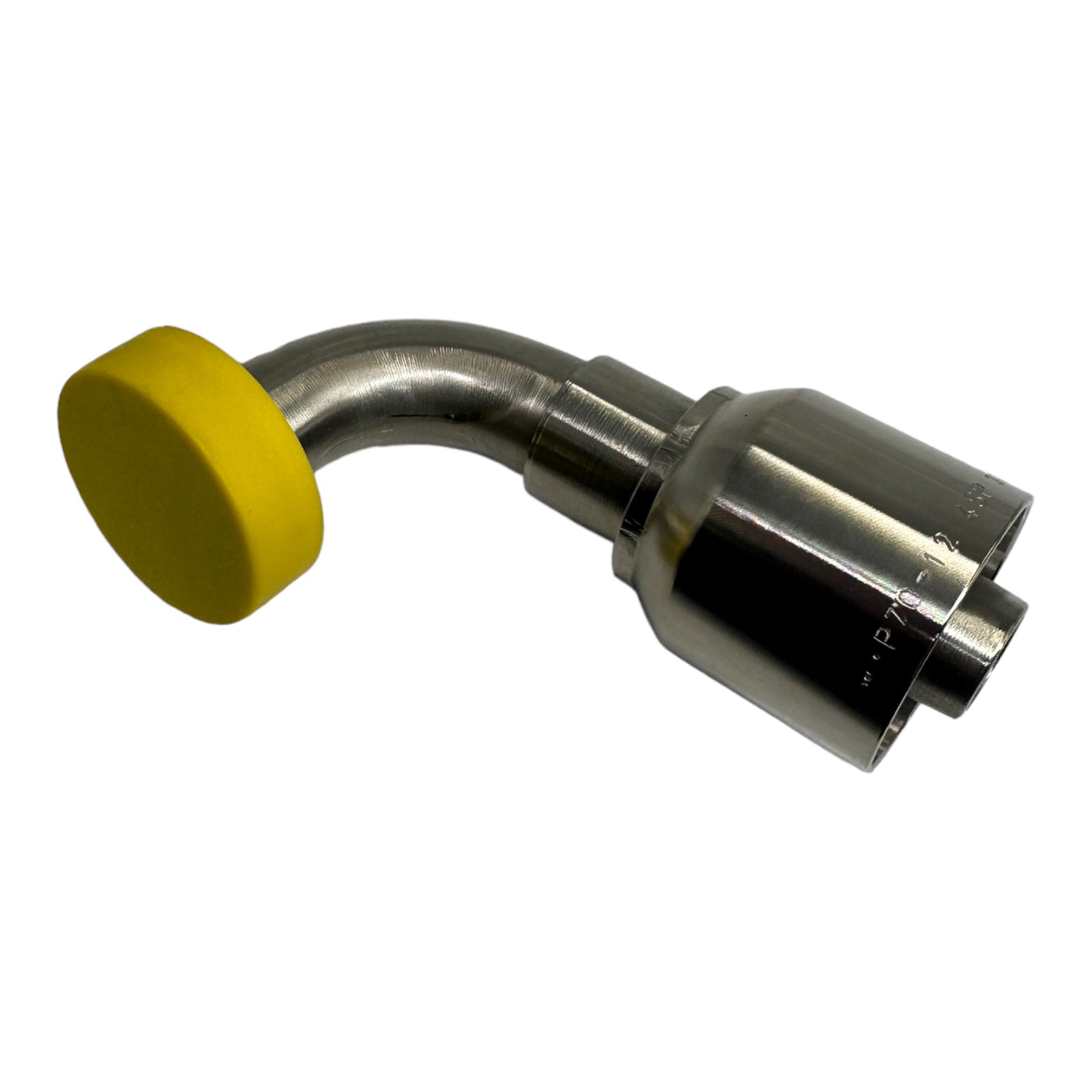

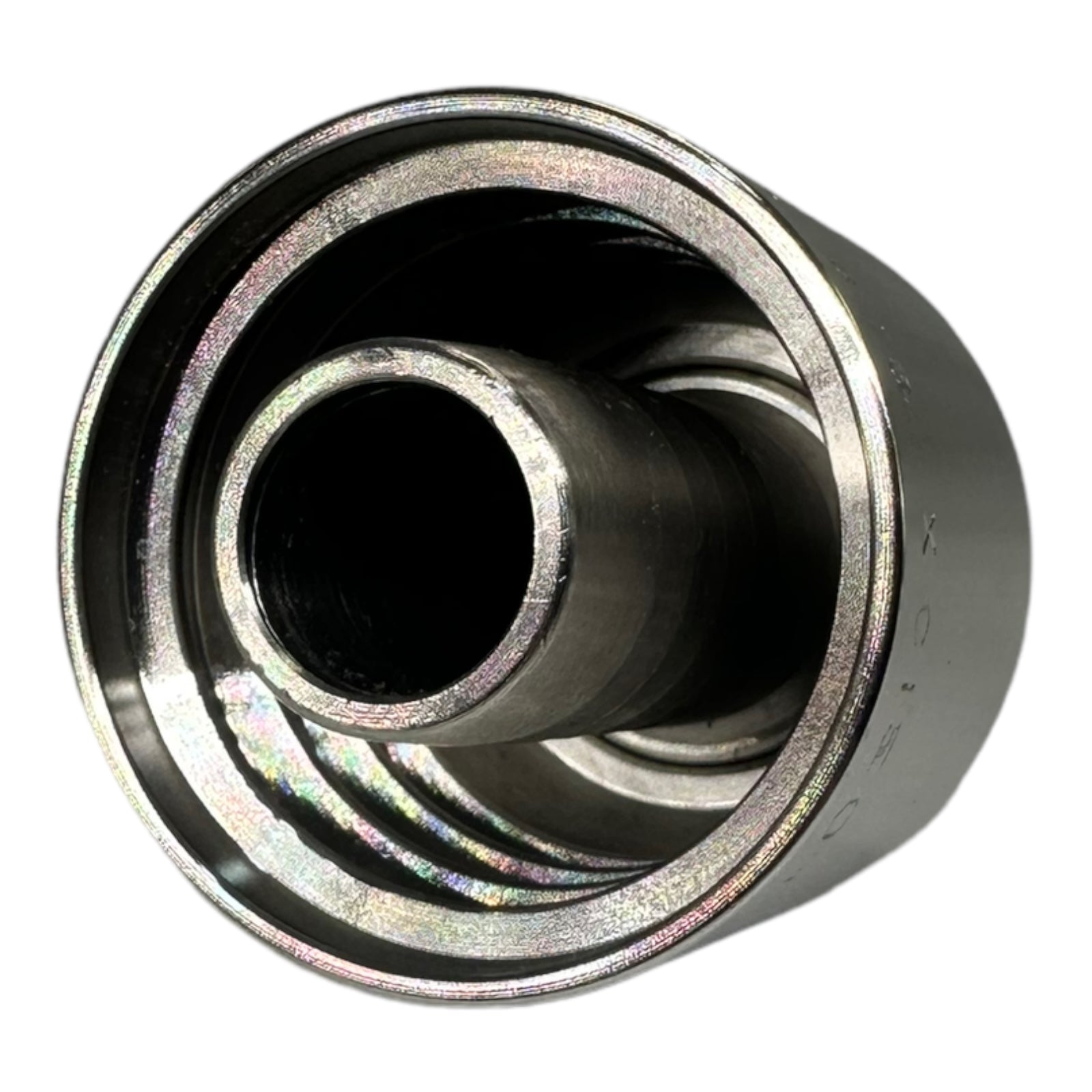

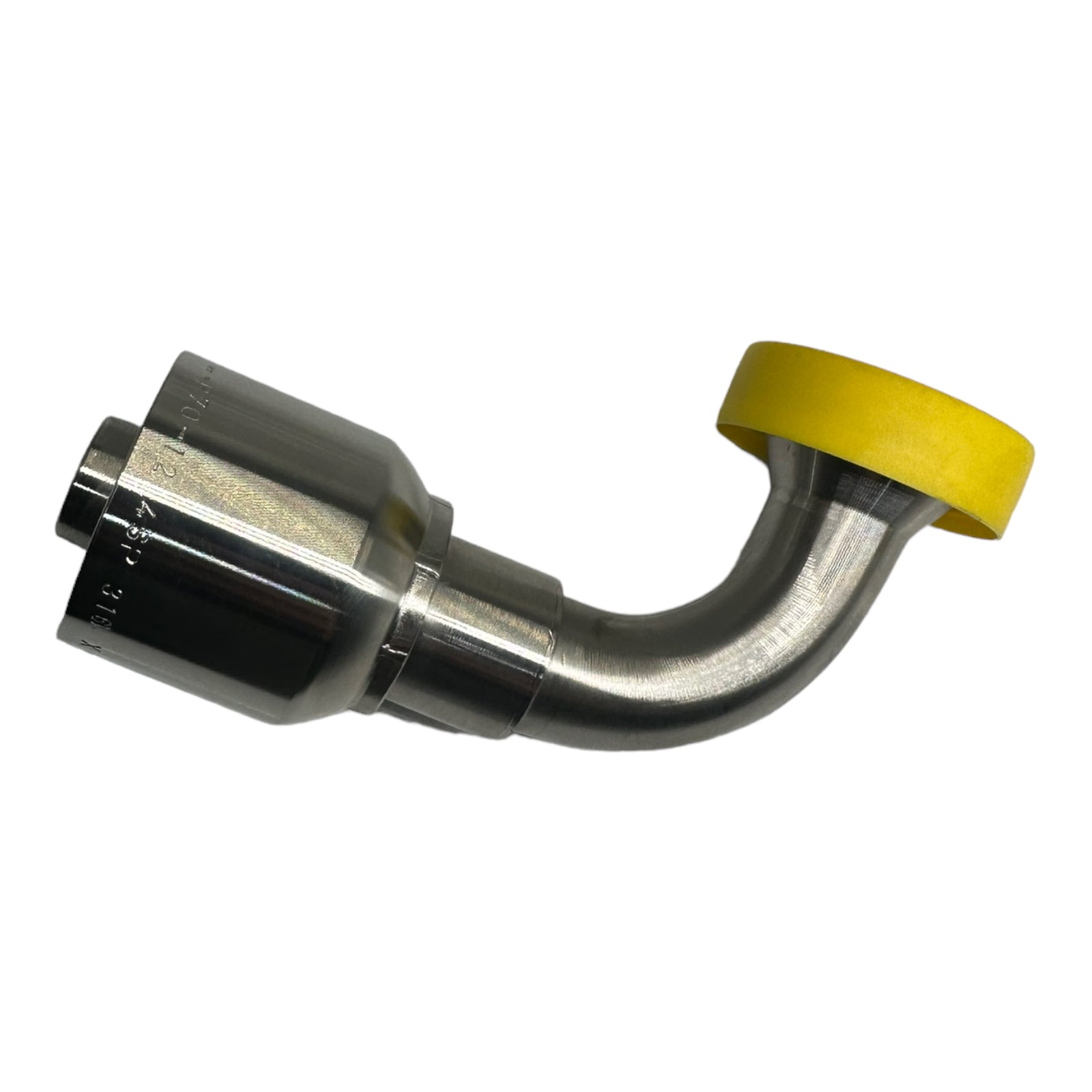

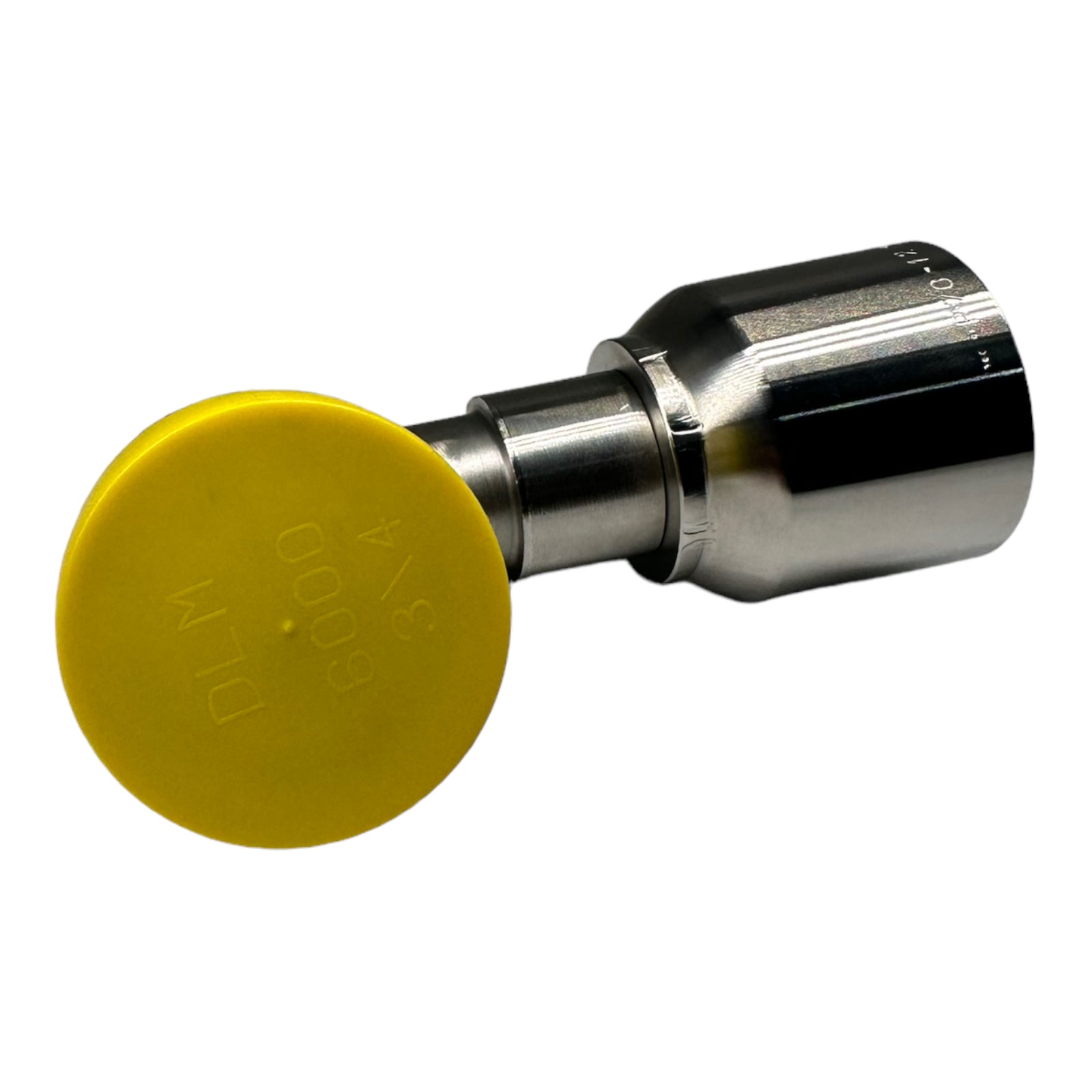

Parker 16N70-12-12C Hochdruck Fitting Elbogen Verbindungsstück 90° 3/4"

Parker 16N70-12-12C Hochdruck Fitting Elbogen Verbindungsstück 90° 3/4"

€76.99
  • Marke: Parker
  • Stückzahl: 1x
  • Herstellernummer: 16N70-12-12C-1P
  • Produktart: Hochdruck Fitting Elbogen Verbindungsstück
  • Winkel: 90°
  • Größe: 3/4"
  • Zustand: Neu Sonstige


Connection 2 Type: SAE Code 62 Flange Head
Body Material: Steel
Maximum Operating Pressure: 420 bar, 42.0 MPa
Connection 1 Size: -12 Size, 19.1 mm (Hose I.D), 3/4 inch (Hose I.D)
For Fluid Type: Air & Water, Hydraulic Fluids on a Mineral-Oil Basis, Water-Glycol, Lubricating Oils, Coolants i.e. Glycol, Industrial Air, Lubricants, Mineral Hydraulic Oil, Water
Industry: Off-road Machinery|Transportation
Connection 1 Type: Hose
Brand: Parker
Application: General high pressure hydraulic applications
Product Type: Crimp Fittings – No-Skive
Technology: Fluid & Gas Handling
Flange Size: 41 mm (see drawing Legend F)
Fitting Length: 98 mm (see drawing Legend A)
Drop Length: 54 mm (see drawing Legend E)
Configuration: Hose to Port
Division: Polymer Hose Division Europe
Connection 2 Type: Flange, SAE Code 62 Head
Shape: Elbow 90°
Shape: Elbow 90°
Port Size: 3/4"
Port Type: SFS
Port Type: SFS
Specifications Met: ISO 12151-3 – E-S
Hose Inside Diameter: -12
Connection 2 Size: 3/4 inch
Connection Length: 58 mm (see drawing Legend B)
